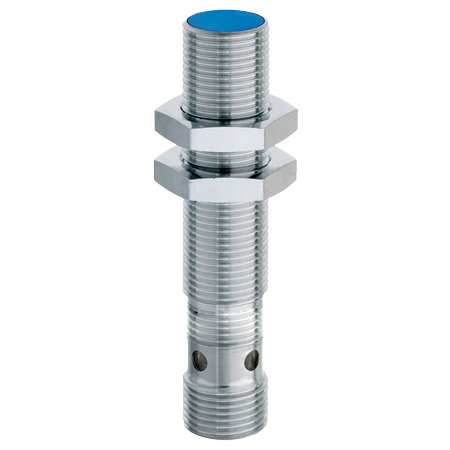

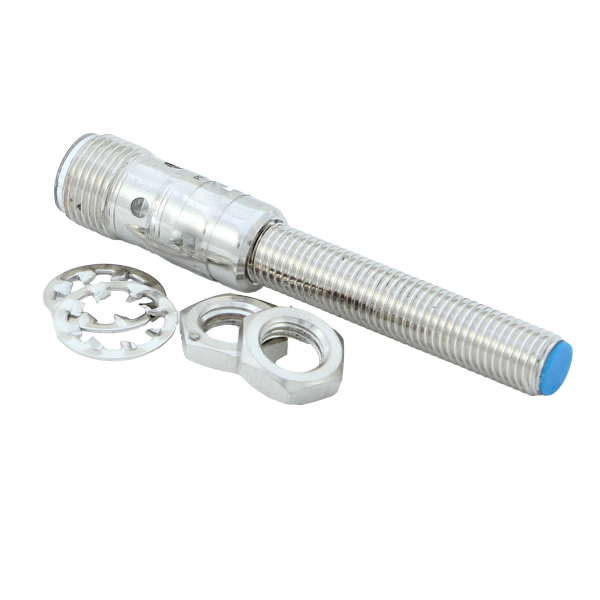

DC Inductive Sensor - Connector Type
| TECHNICAL SPECIFICATION | |
| Type | DC PNP/NPN,NO/NC |
| Operating voltage | 10 - 30V DC |
| Current consumption | <15mA DC |
| Output voltage drop at maximum load | <2V DC |
| Maximum load current | 200mA |
| Sensing distance (Sn) | As per standard |
| Real sensing distance (Sr) | Sn ± 10% |
| Hysterisis | 5 to 15% of Sn |
| Protection class | IP 67 |
| Operating temperature | 0 -70° C |
| Standard target | M8 - 8 x 8 x 1 mm made of mild steel |
| M12 - 12 x 12 x 1 mm made of mild steel | |
| M18 - 18 x 18 x 1 mm made of mild steel | |
| M30 - 30 x 30 x 1mm made of mild steel | |
| Correction factors approximately | SS-0.7, Al/Brass-0.4, Copper-0.3 |
