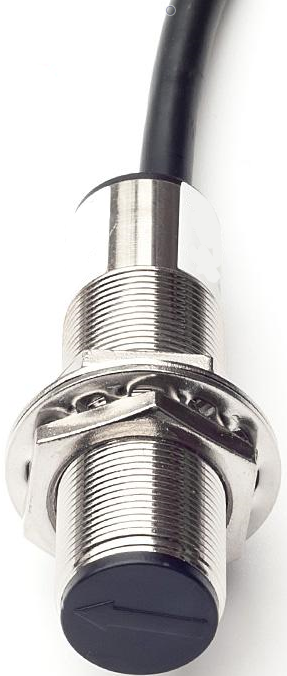

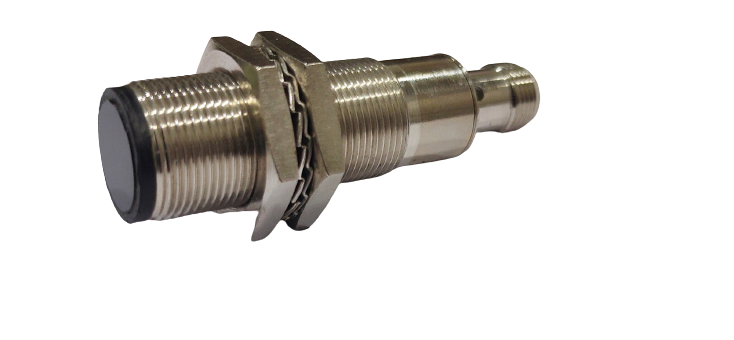

DC Photo Sensor
| TECHNICAL SPECIFICATION | |
| Type | Diffused/Retro-reflection / Through beam |
| Configuration | PNP/NPN, NO,NC |
| Operating voltage | 10 - 30V DC |
| Current consumption | <30mA DC |
| Output voltage drop at maximum load | <2V DC |
| Maximum load current | 200mA |
| Sensing distance (Sn) | Refer Ordering table |
| Real sensing distance (Sr) | Sn ± 10% |
| Hysterisis | 5 to 15% of Sn |
| Protection class | IP 67 |
| Operating temperature | 0 -70° C |
