DPT - 25Mb230V
Differential Pressure Transducer measures pressure differences between two points and give proportional analogue output (0 to 10V or 4-20 mA). They are available with various measuring ranges starts from 10 mbar to 100 mbar. These devices are available without Display. Raytech DPTs are engineered for building automation in HVAC/R industry.
Measurement of differential pressure is useful in a wide range of technologies. It mainly finds application in processing, textile, ventilation, Pressure monitoring in clean rooms, valve and damper control, fan, blower and filter monitoring, air-conditioning, etc and following areas of air handling process technology.
Differential Pressure Transducer
0-25 mbar
0-10 Vdc
| General Data | Mechanical Data | |||
| Degree of Protection | IP65 | Mounting | Through Clamp | |
| Pressure Input | Through Nozzle | |||
| Nozzle Material | Brass | |||
| Electrical Data | Nozzle Diameter | 6mm | ||
| Auxiliary Supply Voltage | 230VAC@50 Hz ±10% | Pressure Connection | Through pipe | |
| Pressure Range | 0 to 25 mbar | O.D. 6.5 mm: I.D. 4 mm | ||
| Output | 0 to 10 VDC | Housing Material | Engineering Plastic-PC | |

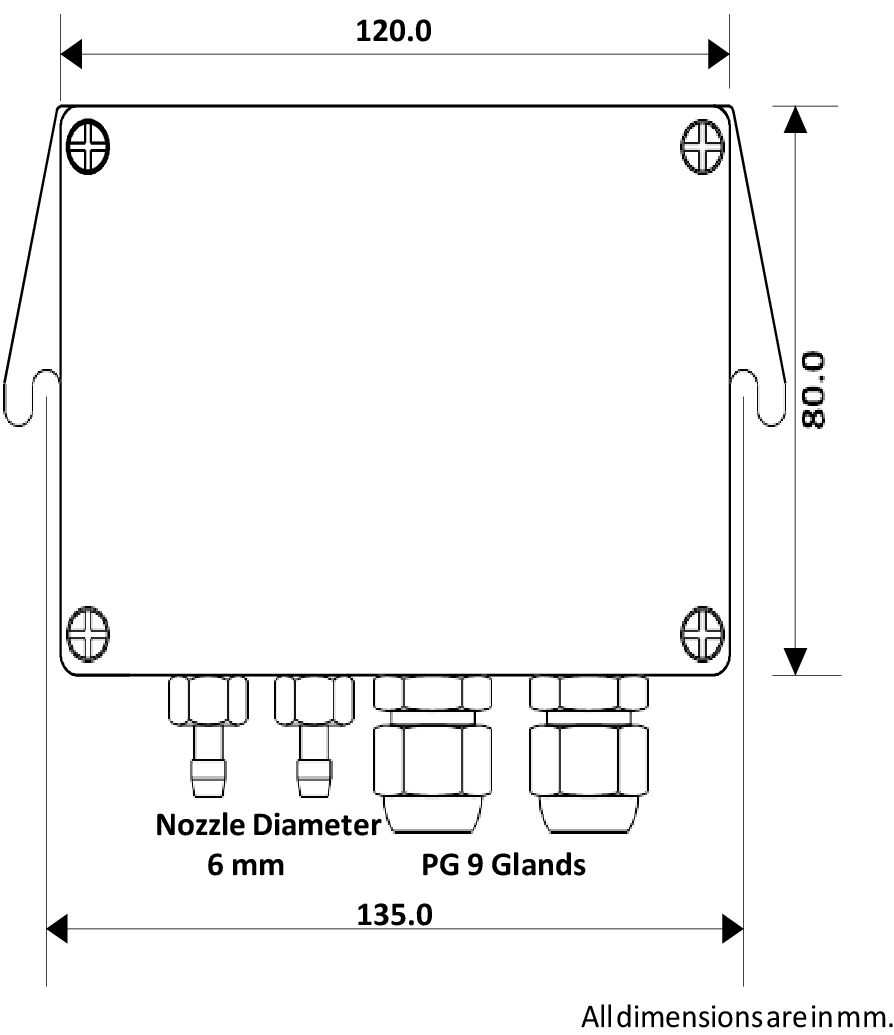

| Accuracy | 1 % FS | Housing Size | 120 x 80 x 56mm | |
| Linearity Error | Max 1% | Termination | Through PG 9 Gland | |
| Over Pressure | 1 Bar | Operating Temperature | 0°C to 55°C | |
| Burst Pressure | ± 1.5 Bar | Storage Temperature | 0°C to 70°C | |
| Load Resistance | >= 4.7 kΩ | |||
| Display | No | |||
